Biopharmaceutical RF Sealers

vante

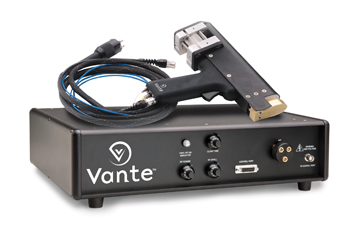

Vante Tube Sealing System – Hand-Held Medium 3806

3806-medThe Vante Hand-Held Medium Tube Sealing System handles a variety of tubing types and sizes using RF technology to seal both dry and fluid filled dielectric tubing, such as PVC and EVA. Contact us for details »

Vante product specsheet PDF »

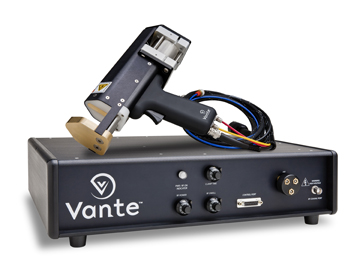

Vante Tube Sealing System – Hand-Held Large 3807

3807-3120-largeThis fast and dependable system features a model 3120, 200 Watt RF generator and the model 3807 large-sized sealing head handles tubing up to 1″ OD*. Contact us for details »

Vante product specsheet PDF »

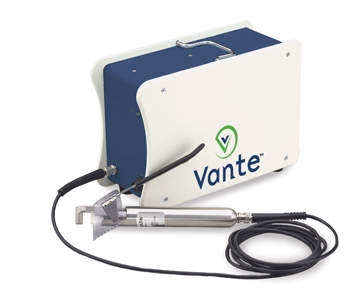

Vante Tube Sealing System – Hand-Held Versatile 4600

4600-versatileThe VanteTM Hand-Held Versatile Tube Sealing System provides flexibility in sealing, powering a hand-held sealing head ideal for media processing and sampling applications. Contact us for details »

Vante product specsheet PDF »






VANTE 4160 TPE Tube Sealer

Vante 4160 tube sealerThe all-new Vante® 4160-series TPE Tubing Sealer is the obvious choice for the reliable, efficient creation of permanent seals in thermoplastic tubing common in single-use manufacturing procedures performed in biopharmaceutical cleanroom production suites, allowing for ease of separation at the seal area. It operates with voltage rated inputs of 100-120 VAC or 230 VAC. The connection of an external compressed air supply is not required. Offering the ultimate in portability, this tubing sealer can be easily moved throughout the suite. The durable, maintenance-free sealing heads are connected to the controller with an 8ft cable and are equipped with a remote cycle-start feature to make this the only TPE Sealer offered standard with truly remote tube sealing capabilities. The controller is equipped with 2 levels of password protection for quality assurance and process control. A simple, user-friendly control panel allows for accurate configuration and operation. The sealing heads have a built-in safety lock feature to prevent them from being opened once a sealing cycle has been initiated. This all-new Vante TPE Tubing Sealer consists of the Model 4160 Controller and interchangeable sealing heads – Model 4161 Sealing Heads for thin-wall TPE tubing, and Model 4162 Sealing Heads for thick-wall TPE tubing up to 1-inch outside diameter. Contact us for details »

Vante product specsheet PDF »








Vante TPE Sealer System (Thin Wall)

vante-tpe-sealer-thin-wallThe TPE Sealer produces consistent, quality seals on most TPE tubing used in biopharmaceutical manufacturing. This sealer is easy to clean, portable and compact. The Thin Wall Sealing Head seals thin wall (.062) tubing: .125 OD – .375 OD. Contact us for details »

Vante product specsheet PDF »








Vante TPE Sealer System (Thick Wall)

vante-tpe-sealer-thick-wallThe TPE Sealer produces consistent, quality seals on most TPE tubing used in biopharmaceutical manufacturing. This sealer is easy to clean, portable and compact.The Thick Wall Sealing Head seals thick wall (.125) tubing: .375 OD – .750 OD. Contact us for details »

Vante product specsheet PDF »






Vante Sterile Connector 3960

vante-sterile-connector-3960The Sterile Connector is an automated table top device which produces a singular aseptic tubing connection from two separate tubing segments. The Model 3960 is designed for use in biopharmaceutical manufacturing applications where aseptic tubing connections are required. Tubing can be wet, dry or fluid filled. Contact us for details »

Vante product specsheet PDF »
